Gateway Integration Overview

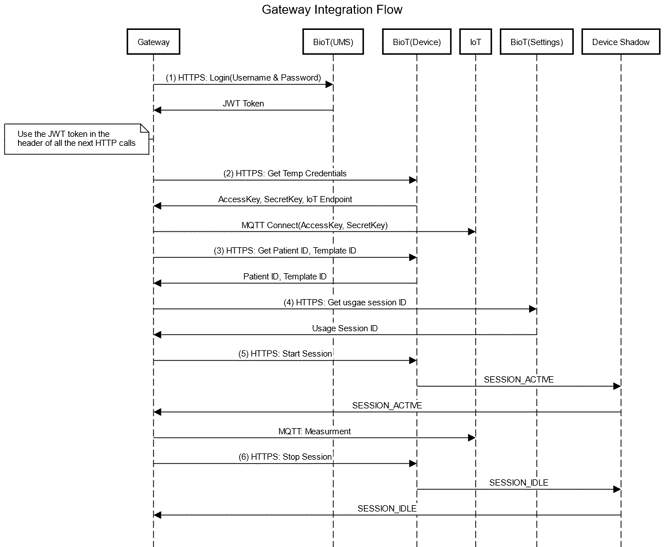

The following sequence diagram illustrates the actions that need to be executed by the gateway to login and send measurements:

The number in parentheses, next to the gateway actions directs to the appropriate section in the document:

  1. Login
  2. Get temporary credentials
  3. Get device information by device id (device service)
  4. Get usage session type id (settings service)
  5. Create and start a usage session for the device (device service)
  6. Stop usage session
