Attribute Types

This page explains the different attribute types and how to use them.

Attributes

Each template consists of a list of Attributes (fields), where each represents a value. For example, a Caregiver template might include among its attributes: Name, ID, Medical Specialty, Date of Birth, and Phone. The following data records (entities) could be created using such a template.

Name

ID

Medical Specialty

Date of Birth

Phone

Dr. John Smith

92541813

Cardiology

25-Aug-1972

1-033-555-9876

Dr. Jane Doe

62182388

Neurology

10-Dec-1983

1-031-555-1234

Each created template starts with a set of predefined attributes. These are different for each Entity (for example, the attributes given for the Device entity are different from those given for the Patient entity).

Each attribute is defined to be a specific type – integer, string, date, etc. For example, a Device template may include a “Device ID” attribute of type string and a “Last Connected” attribute of type date-time.

One of the attribute types is Entity. This is a reference to another Entity’s record. For example, a Patient record may include a reference to a Caregiver.
Entity attributes can also be bilateral references between records. That is, they can uniquely connect 2 entity records so that each can be used to identify the other in the platform. For example, a pacemaker device can reference a specific patient, and that patient can reference the specific pacemaker device.

Attribute Characteristics

Attributes, whether built-in or custom (i.e created by you, the user), have the following characteristics defined in the BioT Console:

  • Display Name – a text string used to identify the attribute in the portals. (The Platform uses this text to create the JSON name, but you can also specify the JSON name yourself.)

📘

Note

BioT's servers communicate with devices and applications through APIs that use JSON as the data format.
As a result, BioT expects specific JSON code to represent the entities when data about them is exchanged through the APIs.
See the following code example for how an entity looks in JSON. The built-in attributes in BioT are prefaced with an underscore _ as a way of keeping track of which are built-in.

{
  _connected : false
  _lastModifiedTime: "11-10-21T13:45:00"
  jsonNameOfSomeCustomAttribute: <value>
}
  • Attribute Type – one of the supported value types – string, integer, date, entity, etc. These are selected from a dropdown menu when creating an attribute (see Attribute Types).
  • Required – a toggle button to specify whether or not the attribute is required when creating a new entity with this template.
  • PHI - a checkbox to specify whether or not the attribute’s data is considered protected, under the category of HIPAA’s PHI.
20162016

Adding a Custom Attribute to a Template

Attribute Types

The sections below detail the different attribute types, their uses, and unique fields within each.

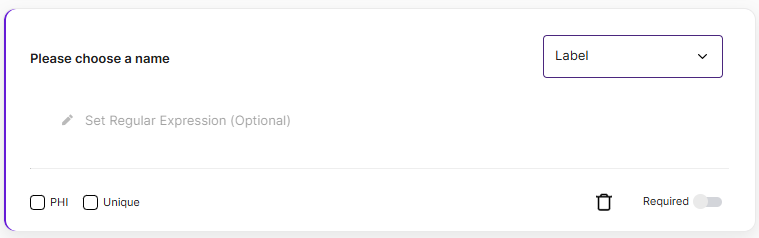

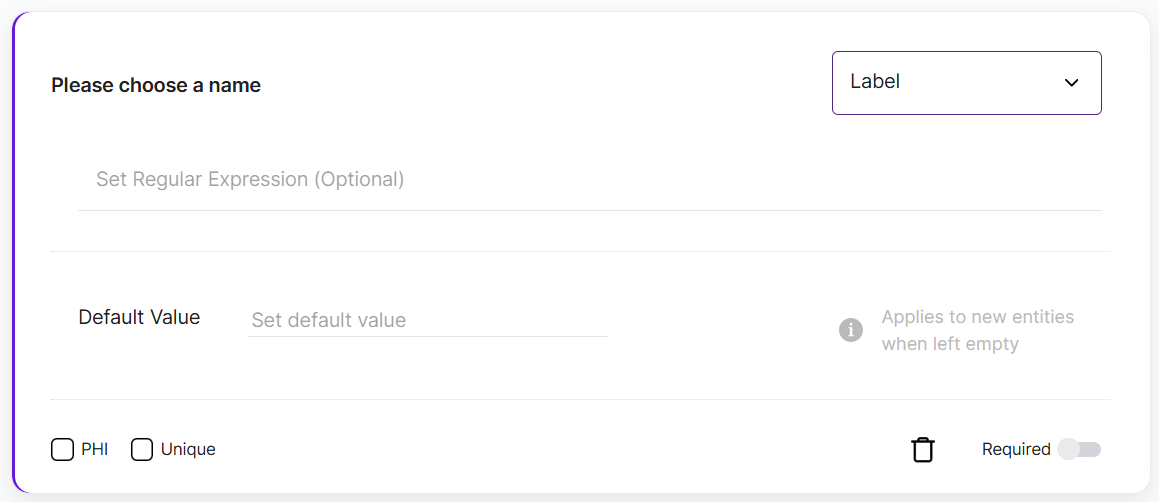

Label

Label fields contain a short string of text. You may also define a regular expression for validation. For example, NER_* means that all values of this field must begin with the characters NER_.

865865

Label Fields

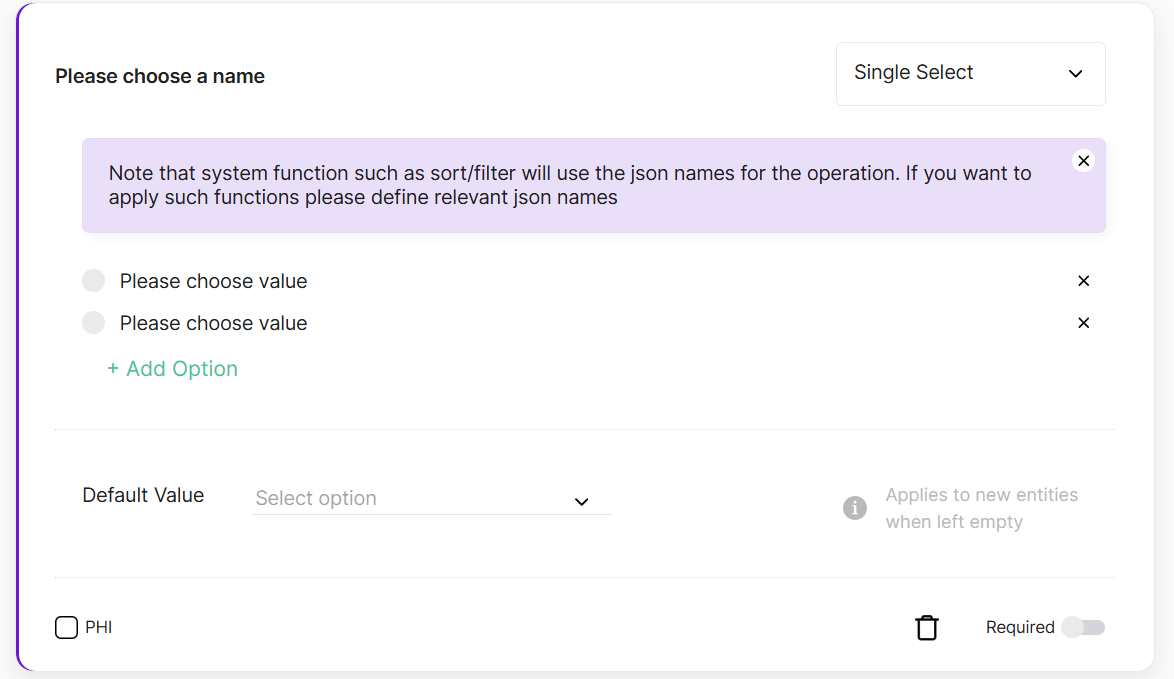

Single Select

Single select fields contain two or more choices of which one must be selected. You must specify the text for the different options.

869869

Single Select Fields

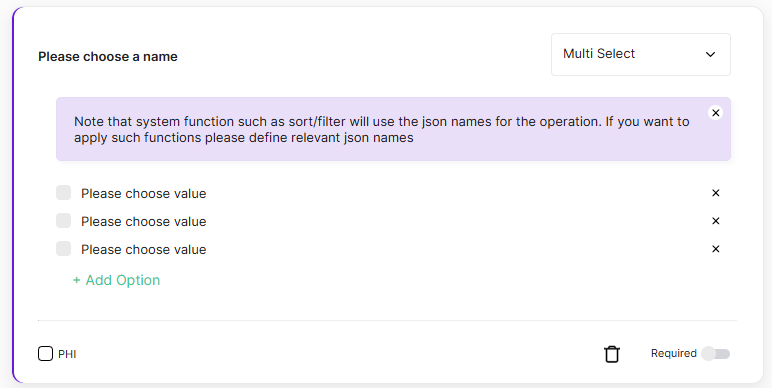

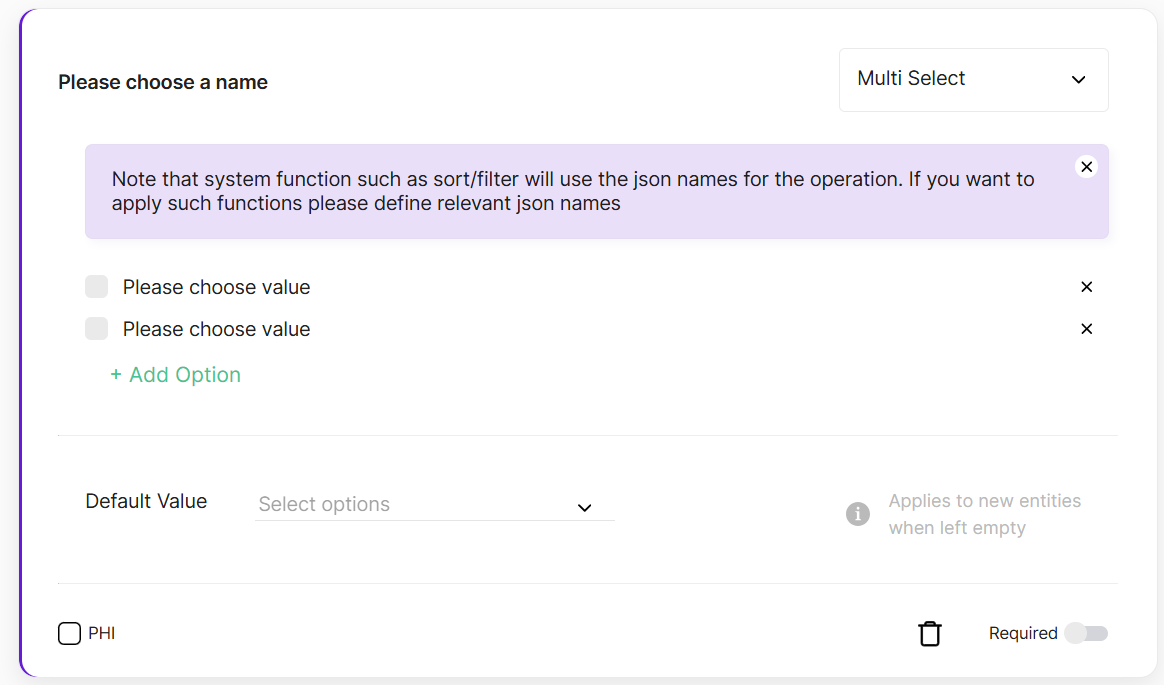

Multi Select

Multi select fields contain two or more choices of which one or more may be selected. You must specify text for the different options.

19861986

Multi Select Fields

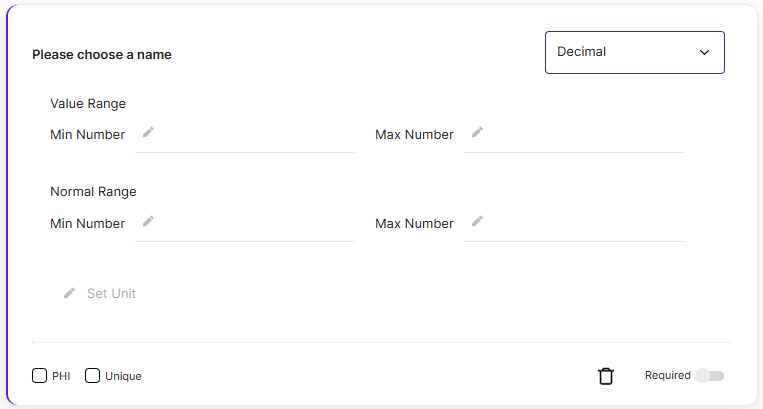

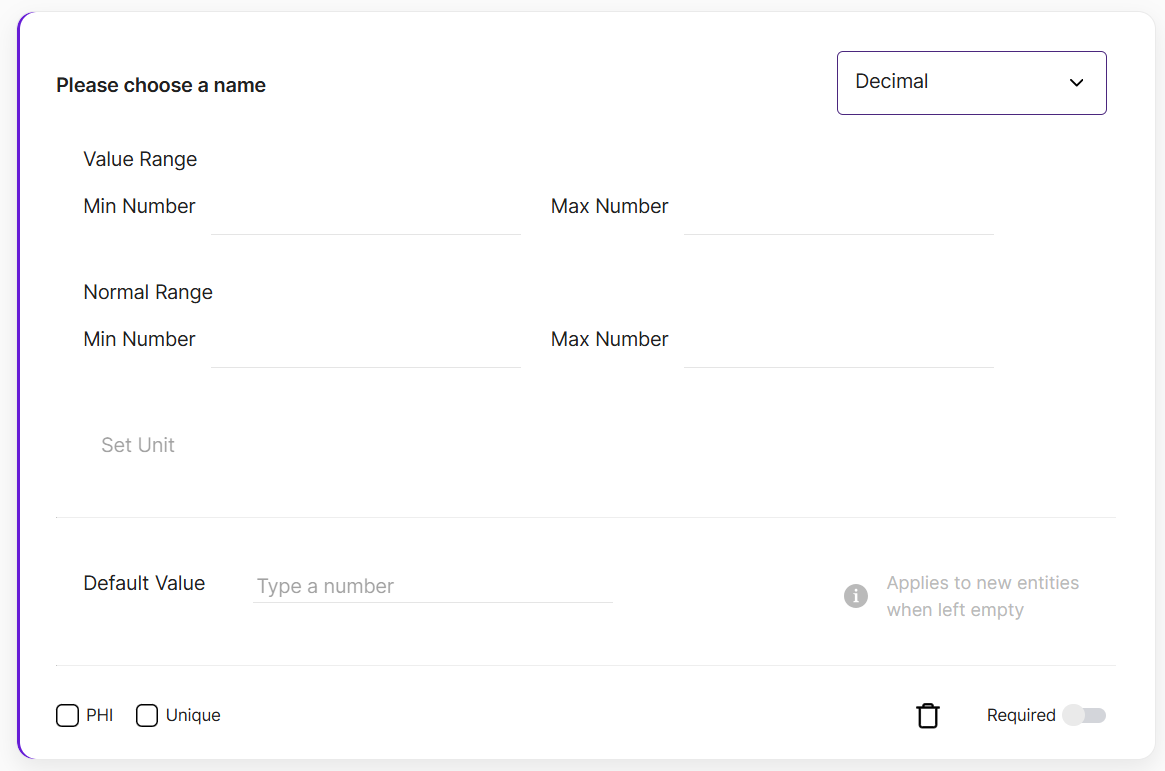

Decimal

A number that can include digits after a decimal point.
You may specify minimum and maximum numbers for the Value Range and for the Normal Range. The Value range specifies the range of valid values. The Normal range specifies the range outside which, BioT may consider the value alert-able. Note that the Normal range must be within the Value range. You may also specify the Unit of measurement to be used, as text.

19651965

Decimal Fields

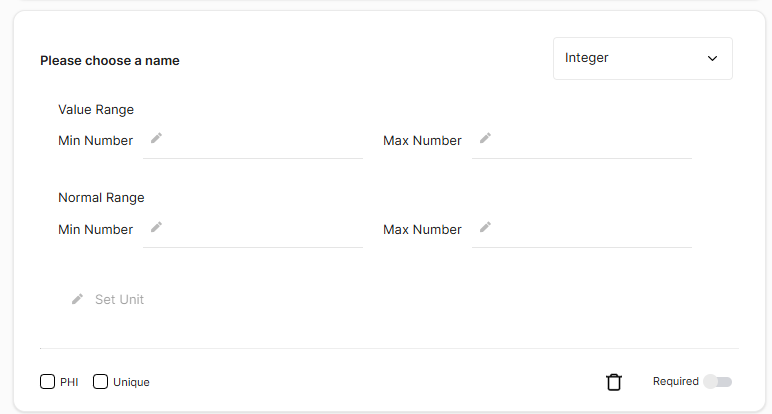

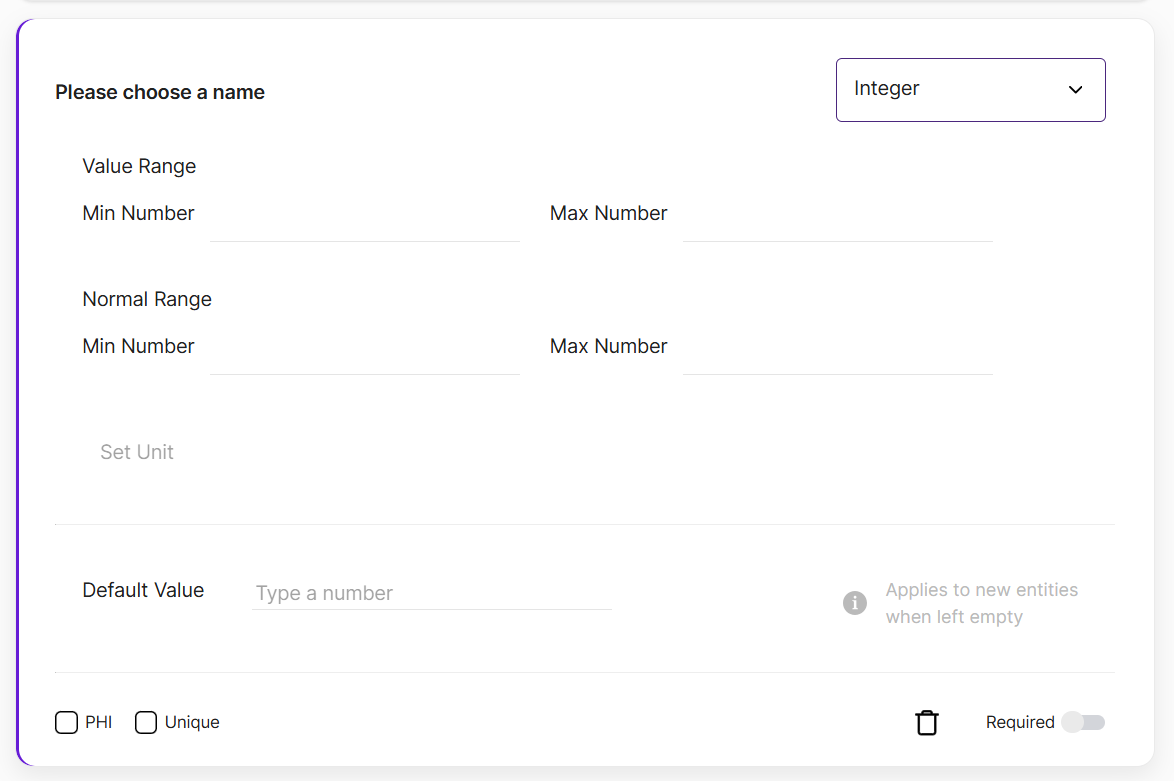

Integer

Any integer.
You may specify minimum and maximum numbers for the Value Range and for the Normal Range. The Value range specifies the range of valid values. The Normal range specifies the range outside which, BioT may consider the value alert-able. Note that the Normal range must be within the Value range. You may also specify the Unit of measurement to be used, as text.

20022002

Integer Fields

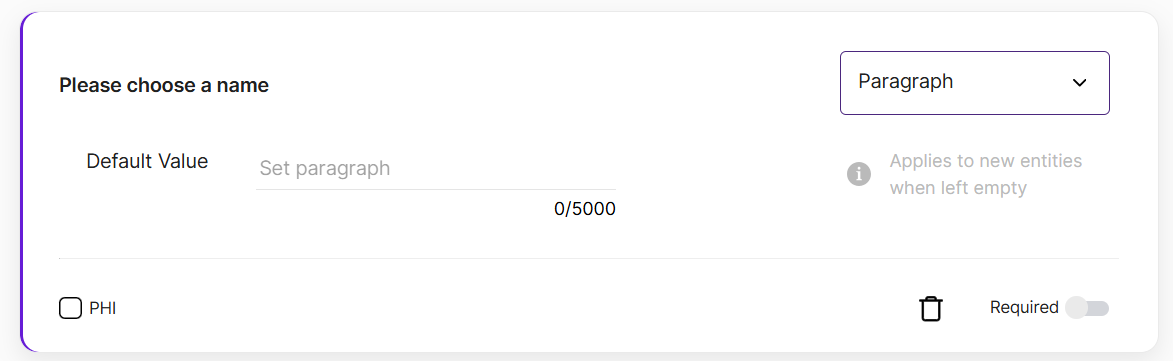

Paragraph

A long string of text that can span multiple lines.

864864

Paragraph Fields

Boolean

Yes (True) or No (False).

Address

The address attribute consists of these text fields - Country, State, City, Zip Code, Street, Additional Info.

Phone

A phone number.

Email

An email address.

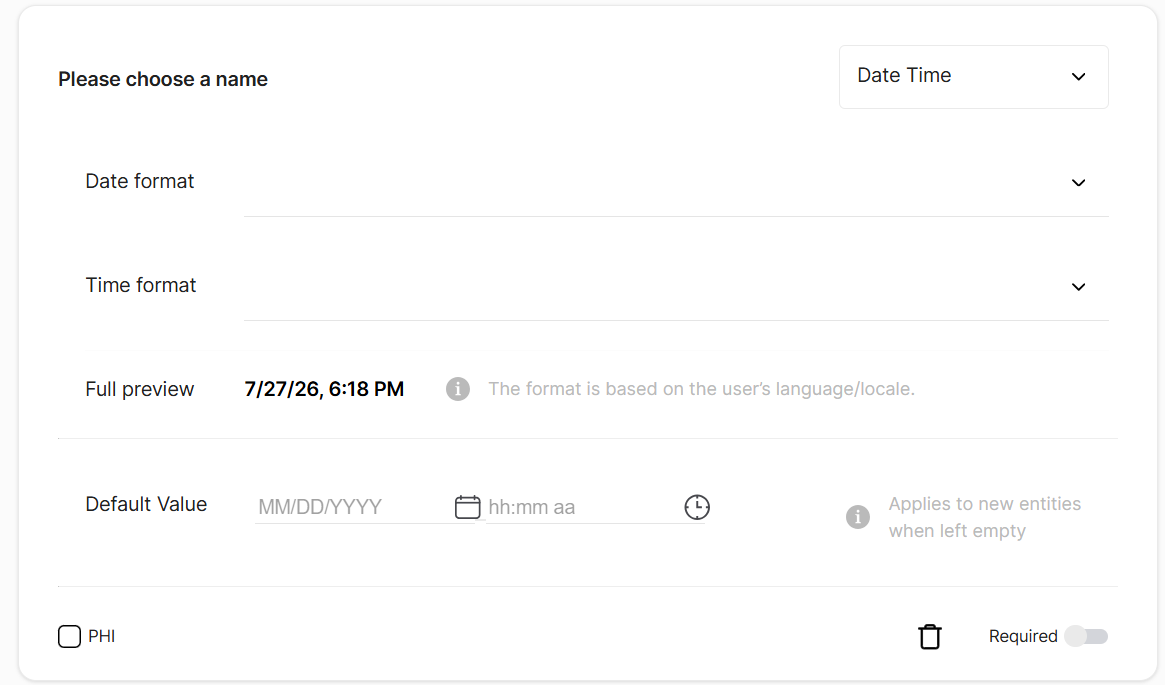

Date Time

A date and time.

Date

A date.

Timezone

Select a single option from a dropdown list of timezones.

Locale

Select a single option from a dropdown list of locales.

Entity

A reference to a specific entity. You must select the entity type and template (or * for any template of the entity type).

922922

Use the Referenced side attribute name (RSAN) field to specify the name by which the referenced entity will refer to this entity. For example, if we are editing a template of an HR wristband, we may have an Entity field called 'Patient', which refers to the patient the wristband belongs to. The RSAN value of the 'Patient' field could be named My HR Wristband, which would then be automatically available when viewing the patient entity in the organization portal.

You can check the Reference Uniquely checkbox to specify that the entity in question can only be referenced by a single other entity of this kind. For example, if you are editing an Entity attribute called 'Patient' in a Device template, selecting Reference Uniquely would determine that only a single patient is allowed to be referenced by this device, meaning the device can only be used by a single patient.

Name

A name consists of two fields: First Name and Last Name.

Linked

The Linked attribute is specific to the Usage Type Summary Field. It is linked to inherit the data structure of fields previously defined in patient observations. For example, The Summary HR attribute takes all the heart rate measurements of a patient recorded per second and represent the average heart rate per session. The Summary HR parameters are predefined as the value heart rate range (min to max) and normal heart rate range (min to max).

951951
